Disposable Mini Invasive Percutaneous Nephrolithotomy Kit

It is a complete renal dilatation kit to sequentially dilate the nephrostomy tract for mini-invasive Percutaneous Nephrolithotomy, it is also called PCNL kit, or mini-invasive PCNL dilatation kit.
The whole kit consists of several dilator tubes, a tearing sheath, and optional accessories, including a negative suction adaptor, a guide wire, a puncture needle, or a drainage catheter.

Scope of application: It is a complete sequential dilatation kits for percutaneous nephrostomy, the kit is used to establish a percutaneous tract to the renal pelvis.
Applicable to: It is suitable for patients with kidney stones or hydronephrosis during percutaneous renal dilation and drainage and endoscopic surgical instrument placement.
Details

Features:

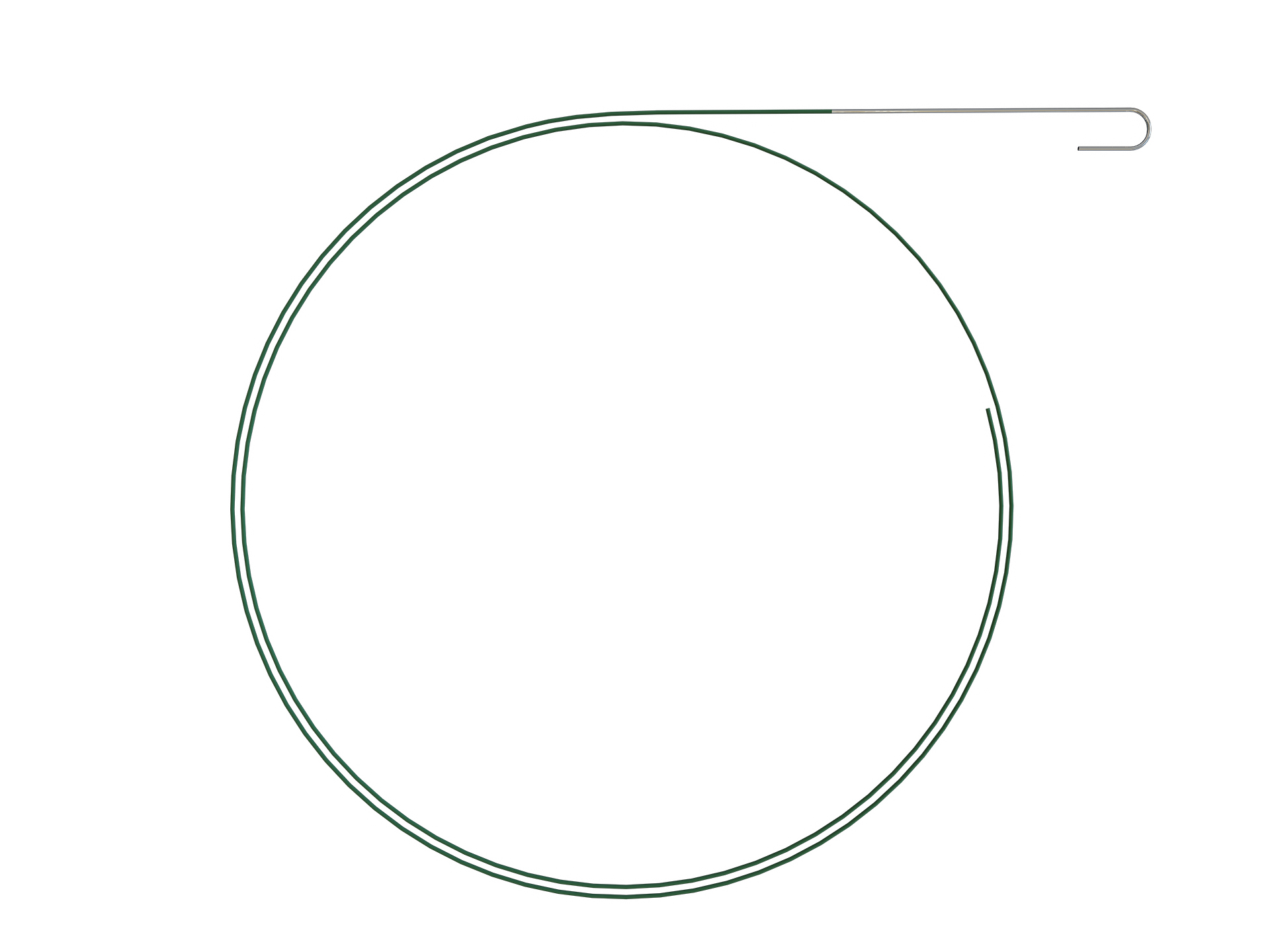

---Firm and kink resistant stainless steel guide wire, never lose the tract.

---Angled distal tip, less injury to the renal parenchyma.

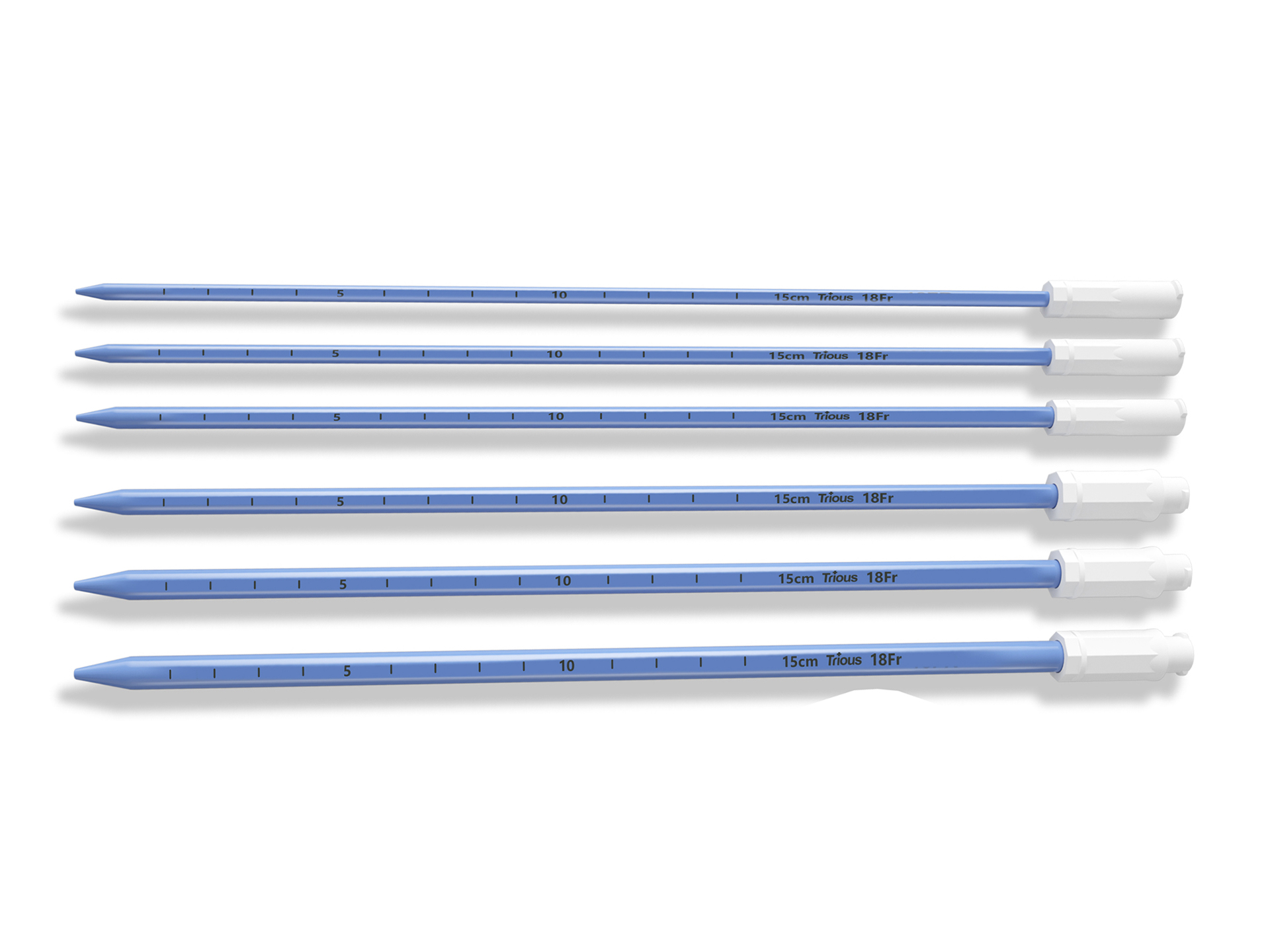

---Graduated dilators set from Diameter 8Fr to 24Fr with gradually tapering tips.

---Calibration printed firmly on dilators’ body for access depth control.

---All the dilators and sheath are visible under fluoroscopy and B-Scan.

---Specially designed dilatation tubes provide good handling feel, less friction force, and minimize tissue damage.

---PTFE sheath that is easily to be lubricated, it has smooth inner wall that won’t hurt the instrument and smooth outer that won’t hurt the human tissue.

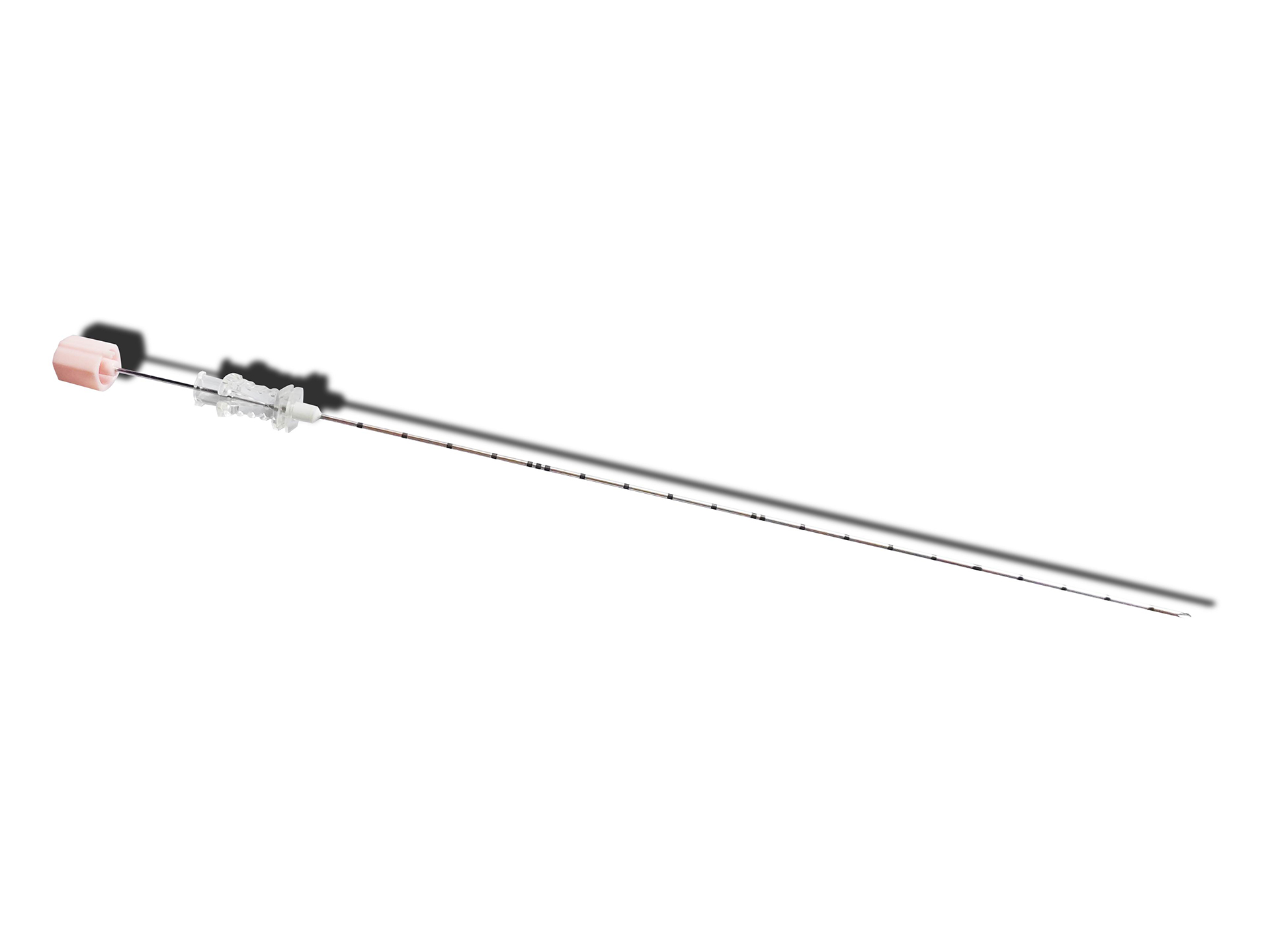

---The puncture needle is visible under ultrasound by its special tip process.

Package: individual box each dilatation kit, sterilized by ethylene oxide.

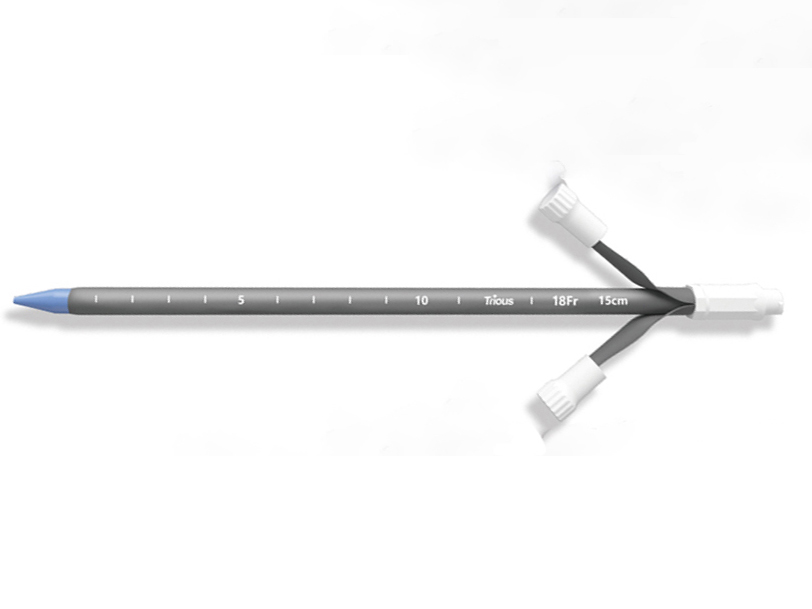

Tearing renal sheath could be teared and removed easily by pulling the two ears on the sheath head as photo below.


Ordering Information

Model No.

Sheath Size

Optional Package configuration

Inner Diameter (Fr)

Length (cm)

206JT12DG

12

18

1x 12Fr dilator, 1x sheath, 1x Y sheath joint connector

206JT14DG

14

18

1x 14Fr dilator, 1x sheath, 1x Y sheath joint connector

206JT16DG

16

18

1x 16Fr dilator, 1x sheath, 1x Y sheath joint connector

206JT18DG

18

18

1x 18Fr dilator, 1x sheath, 1x Y sheath joint connector

206JT20DG

20

18

1x 20Fr dilator, 1x sheath, 1x Y sheath joint connector

206JT22DG

22

18

1x 22Fr dilator, 1x sheath, 1x Y sheath joint connector

206JT24DG

24

18

1x 24Fr dilator, 1x sheath, 1x Y sheath joint connector

206JT14JY

14

18

1x 14Fr dilator, 1x sheath, 1x Y sheath joint connector, 8/10/12Fr dilator each 1 pcs

206JT16JY

16

18

1x 16Fr dilator, 1x sheath, 1 Yx sheath joint connector, 8/10/12/14Fr dilator each 1 pcs

206JT18JY

18

18

1x 18Fr dilator, 1x sheath, 1x Y sheath joint connector, 8/10/12/14/16Fr dilator each 1 pcs

206JT20JY

20

18

1x 20Fr dilator, 1x sheath, 1x Y sheath joint connector, 8/10/12/14/16/18Fr dilator each 1 pcs

206JT22JY

22

18

1x 22Fr dilator, 1x sheath, 1x Y sheath joint connector, 8/10/12/14/16/18/20Fr dilator each 1 pcs

206JT24JY

24

18

1x 24Fr dilator, 1x sheath, 1x Y sheath joint connector, 8/10/12/14/16/18/20Fr dilator each 1 pcs

206JT14TZ

14

18

1x 14Fr dilator, 1x sheath, 1 Yx sheath joint connector, 1x guide wire, 1x puncture needle, 8/10/12Fr dilator each 1pcs

206JT16TZ

16

18

1x 16Fr dilator, 1x sheath, 1x Y sheath joint connector, 1 x guide wire, 1x puncture needle, 8/10/12/14Fr dilator each 1pcs

206JT18TZ

18

18

1x 18Fr dilator, 1x sheath, 1x Y sheath joint connector, 1x guide wire, 1x puncture needle, 8/10/12/14/16Fr dilator each 1pcs

206JT20TZ

20

18

1x 20Fr dilator, 1x sheath, 1x Y sheath joint connector, 1x guide wire, 1x puncture needle, 8/10/12/14/16/18Fr dilator each 1pcs

206JT22TZ

22

18

1x 22Fr dilator, 1x sheath, 1 Y sheath joint connector, 1x guide wire, 1x puncture needle, 8/10/12/14/16/18/20Fr dilator each 1pcs

206JT24TZ

24

18

1x 24Fr dilator, 1x sheath, 1 Y sheath joint connector, 1x guide wire, 1x puncture needle, 8/10/12/14/16/18/20Fr dilator each 1pcs

206PT12DG

12

18

1x 12Fr dilator, 1x sheath

206PT14DG

14

18

1x 14Fr dilator, 1x sheath

206PT16DG

16

18

1x 16Fr dilator, 1x sheath

206PT18DG

18

18

1x 18Fr dilator, 1x sheath

206PT20DG

20

18

1x 20Fr dilator, 1x sheath

206PT22DG

22

18

1x 22Fr dilator, 1x sheath

206PT24DG

24

18

1x 24Fr dilator, 1x sheath

206PT14JY

14

18

1x 14Fr dilator, 1x sheath, 8/10/12Fr dilator each 1pcs

206PT16JY

16

18

1x 16Fr dilator, 1x sheath, 8/10/12/14Fr dilator each 1pcs

206PT18JY

18

18

1x 18Fr dilator, 1x sheath, 8/10/12/14/16Fr dilator each 1pcs

206PT20JY

20

18

1x 20Fr dilator, 1x sheath, 8/10/12/14/16/18Fr dilator each 1pcs

206PT22JY

22

18

1x 22Fr dilator, 1x sheath, 8/10/12/14/16/18/20Fr dilator each 1pcs

206PT24JY

24

18

1x 24Fr dilator, 1x sheath, 8/10/12/14/16/18/20Fr dilator each 1pcs

206PT14TZ

14

18

1x 14Fr dilator, 1x sheath, 1x guide wire, 1x puncture needle, 8/10/12Fr dilator each 1pcs

206PT16TZ

16

18

1x 16Fr dilator, 1x sheath, 1x guide wire, 1x puncture needle, 8/10/12/14Fr dilator each 1pcs

206PT18TZ

18

18

1x 18Fr dilator, 1x sheath, 1x guide wire, 1x puncture needle, 8/10/12/14/16Fr dilator each 1pcs

206PT20TZ

20

18

1x 20Fr dilator, 1x sheath, 1x guide wire, 1x puncture needle, 8/10/12/14/16/18Fr dilator each 1pcs

206PT22TZ

22

18

1x 22Fr dilator, 1x sheath, 1x guide wire, 1x puncture needle, 8/10/12/14/16/18/20Fr dilator each 1pcs

206PT24TZ

24

18

1x 24Fr dilator, 1x sheath, 1x guide wire, 1x puncture needle, 8/10/12/14/16/18/20Fr dilator each 1pcs


Related Products

Disposable Mini Invasive Percutaneous Nephrolithotomy Kit

It is a complete renal dilatation kit to sequentially dilate the nephrostomy tract for MPCNL (mini percutaneous nephrolithotomy), including, a 18g/20g puncture needle with effective length 20cm, a sta

Hybrid Guide Wire with stiff zebra nitinol wire and hydrophilic tip for urology

Stone stop Catheter / Stone Cone / Coil Basket

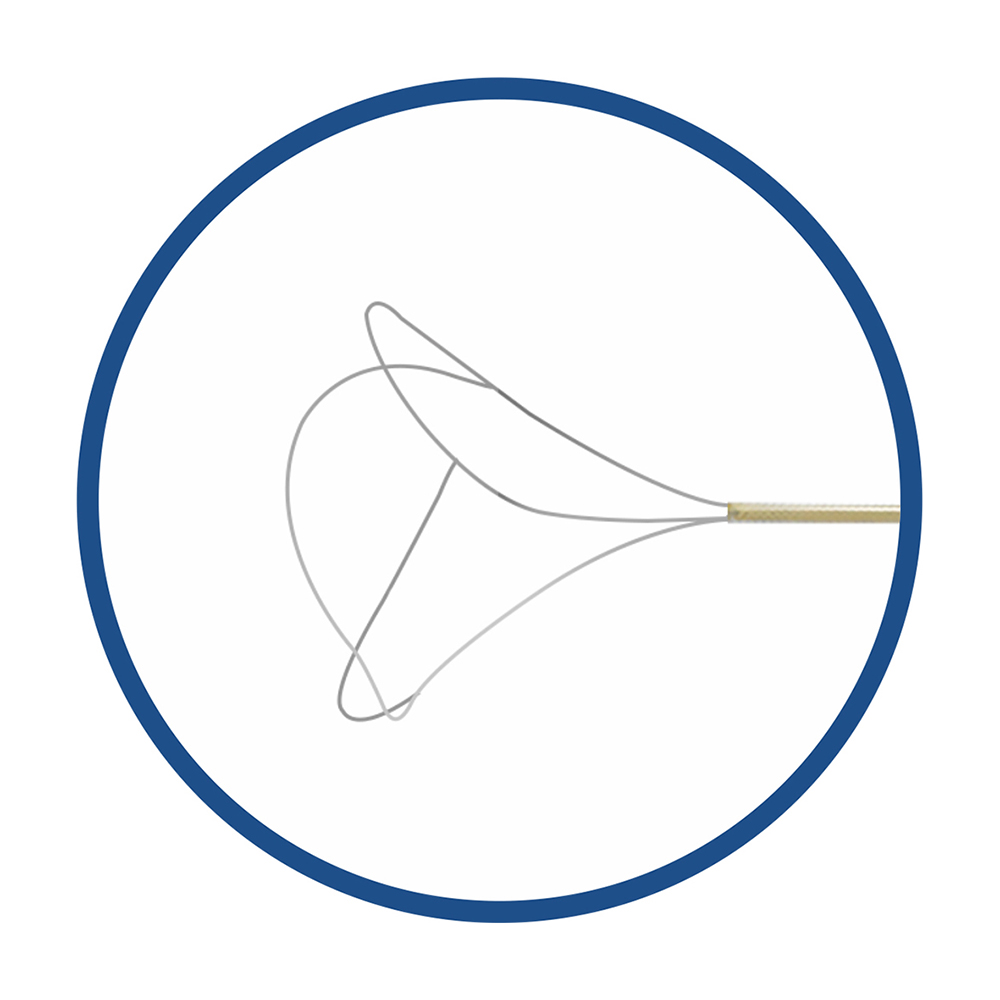

Three Wire Kidney Stone Retrievial Basket
