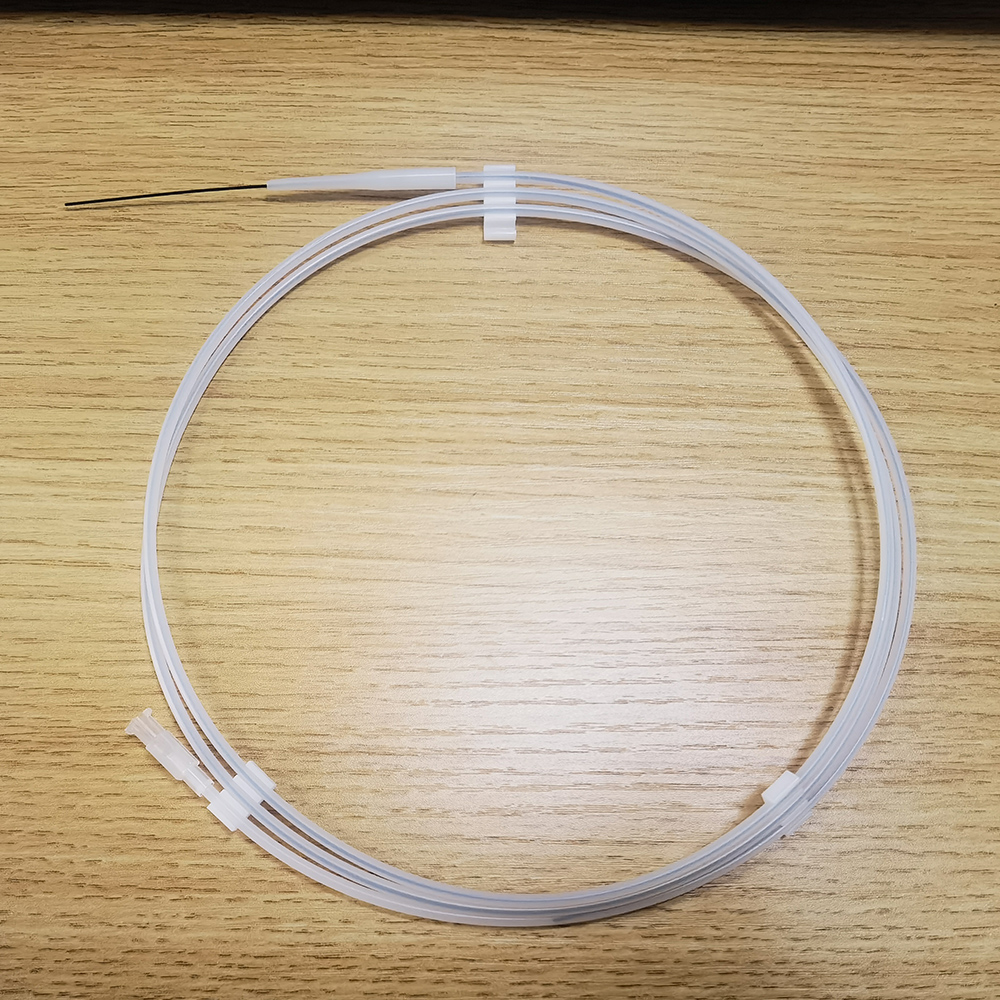

Hydrophilic Urological Guide Wire for urology

Hydrophilic guide wire is very soft and hydrophilic, it could entrance the narrow ureter easily because of its soft wire body, hydrophilic coating and cause less and softer irritation to the whole urinary tract.
Working Principle: Disposable urological guide wire can be guided by B-ultrasound or X-ray into the urinary system or tissue, then guides the device into the urinary tract or tissue.
Applicable groups: for patients who need to guide or introduce other devices into the urinary tract or tissue.
Expected Usage Environment: this product is intended to be used in hospitals and clinics, and should be operated by trained medical professionals. This product is for single use and is valid for three years from the date of sterilization. Product over sterilization expiry date may not be used.
Details

Description:

It is a type of updated disposable guide wire used for negotiating tract in urology surgery, the material of the wire core is kink-resistant nitinol, the coating material is ultra hydrophilic medical PVP that will reduce damage to the lumen mucosa and instruments.


Features:

---Kink resistant Nickel-titanium alloy inner core.

---Ultra soft distal tip design.

---Hydrophilic and lubricious PVP coating facilitates passing through strictures and guiding of urological instruments.

---Highly radiopaque tip designed to provide enhanced visibility under fluoroscopy and enable accurate positioning; [Notice]: it is difficult to observe the movement under the endoscope because of its black color surface.


Tip Parameters:

---Distal tip length: 5cm;

---Tip shape: straight or angled;

---Diameter: 0.028/0.032/0.035 inch available;

---Length: 120cm/150cm/180cm available.

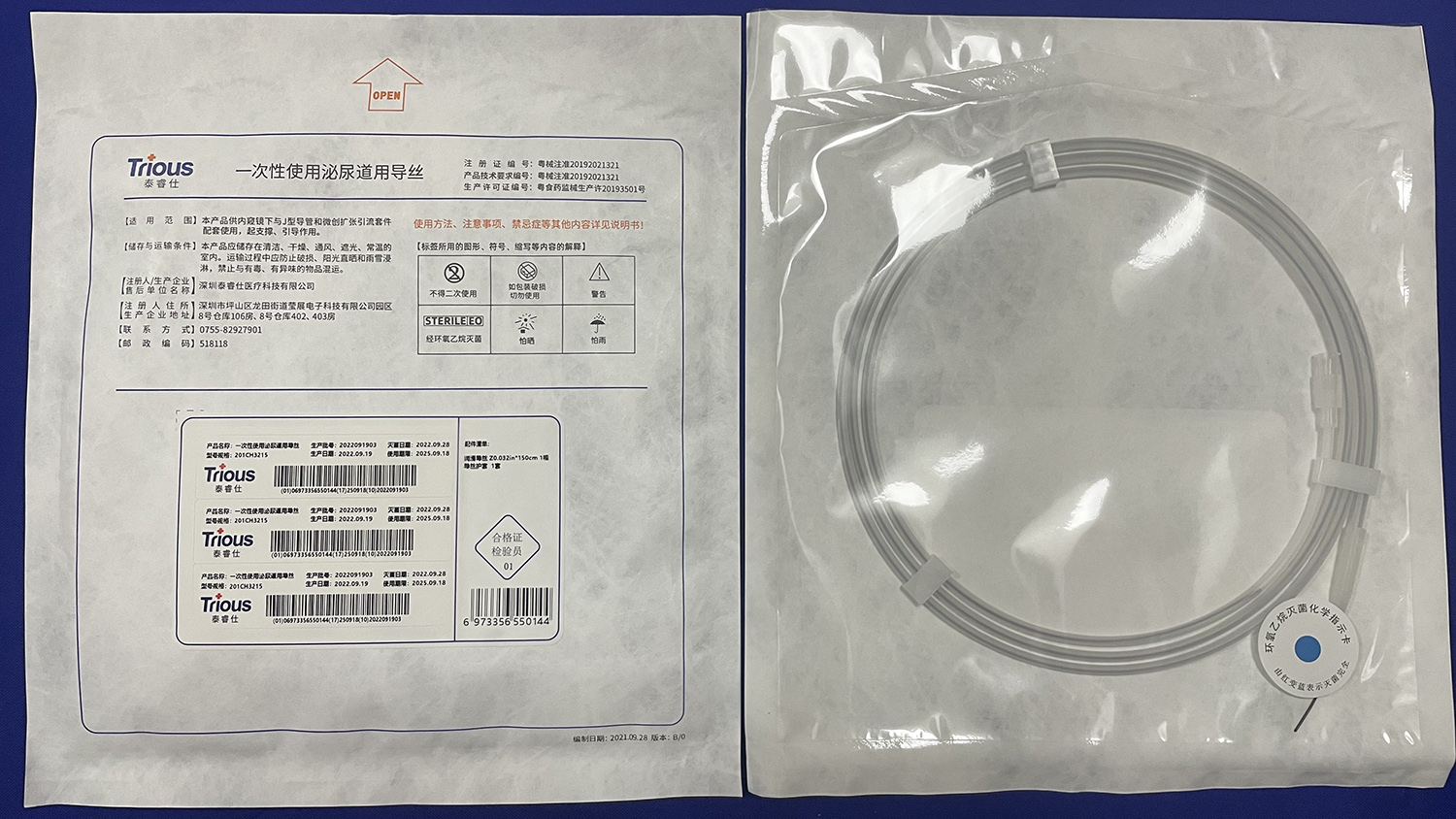

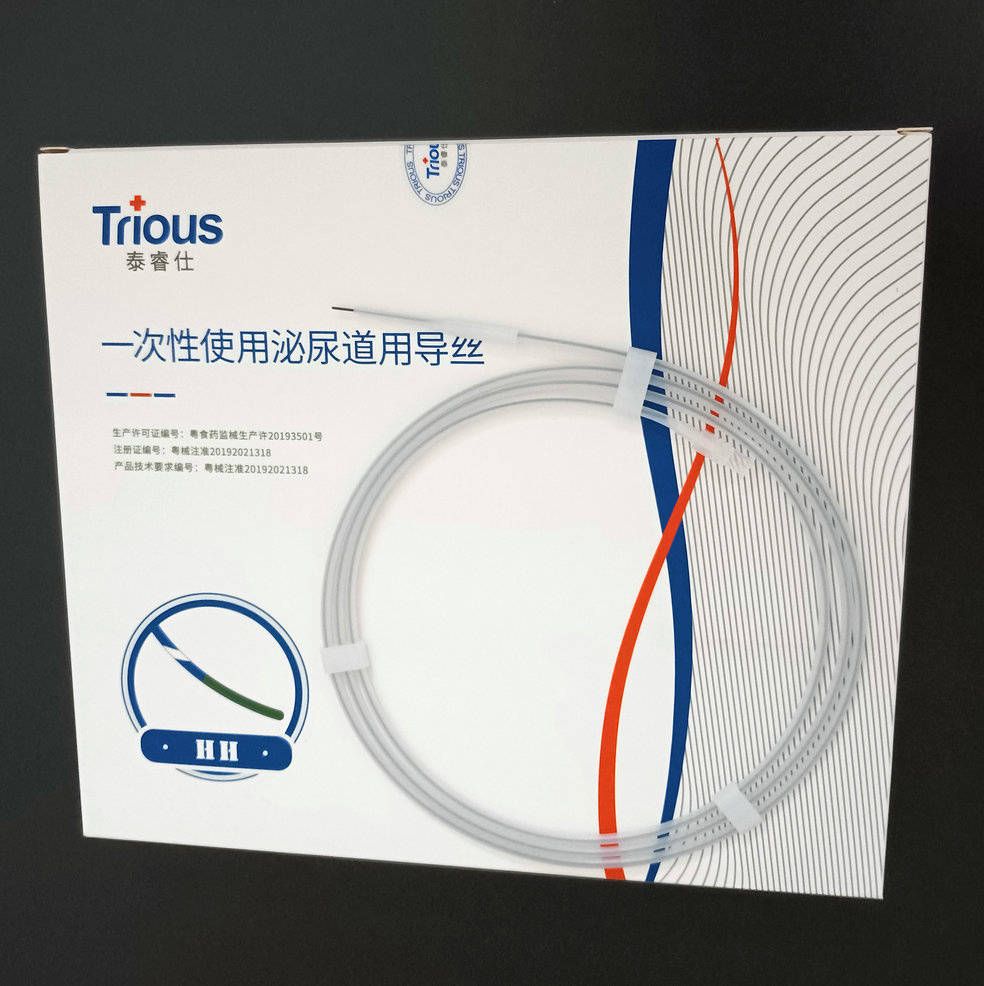

Package: individual bag each wire, and 5 bags each box, sterilized by ethylene oxide.


Ordering Information


Model No.

OD (in)

Length(cm)

Tip

Package

201CH2812

0.028

120

5cm Soft

1/Pack 5P/Box

201CH2815

150

5cm Soft

1/Pack 5P/Box

201CH2818

180

5cm Soft

1/Pack 5P/Box

201CH3212

0.032

120

5cm Soft

1/Pack 5P/Box

201CH3215

150

5cm Soft

1/Pack 5P/Box

201CH3218

180

5cm Soft

1/Pack 5P/Box

201CH3512

0.035

120

5cm Soft

1/Pack 5P/Box

201CH3515

150

5cm Soft

1/Pack 5P/Box

201CH3518

180

5cm Soft

1/Pack 5P/Box
