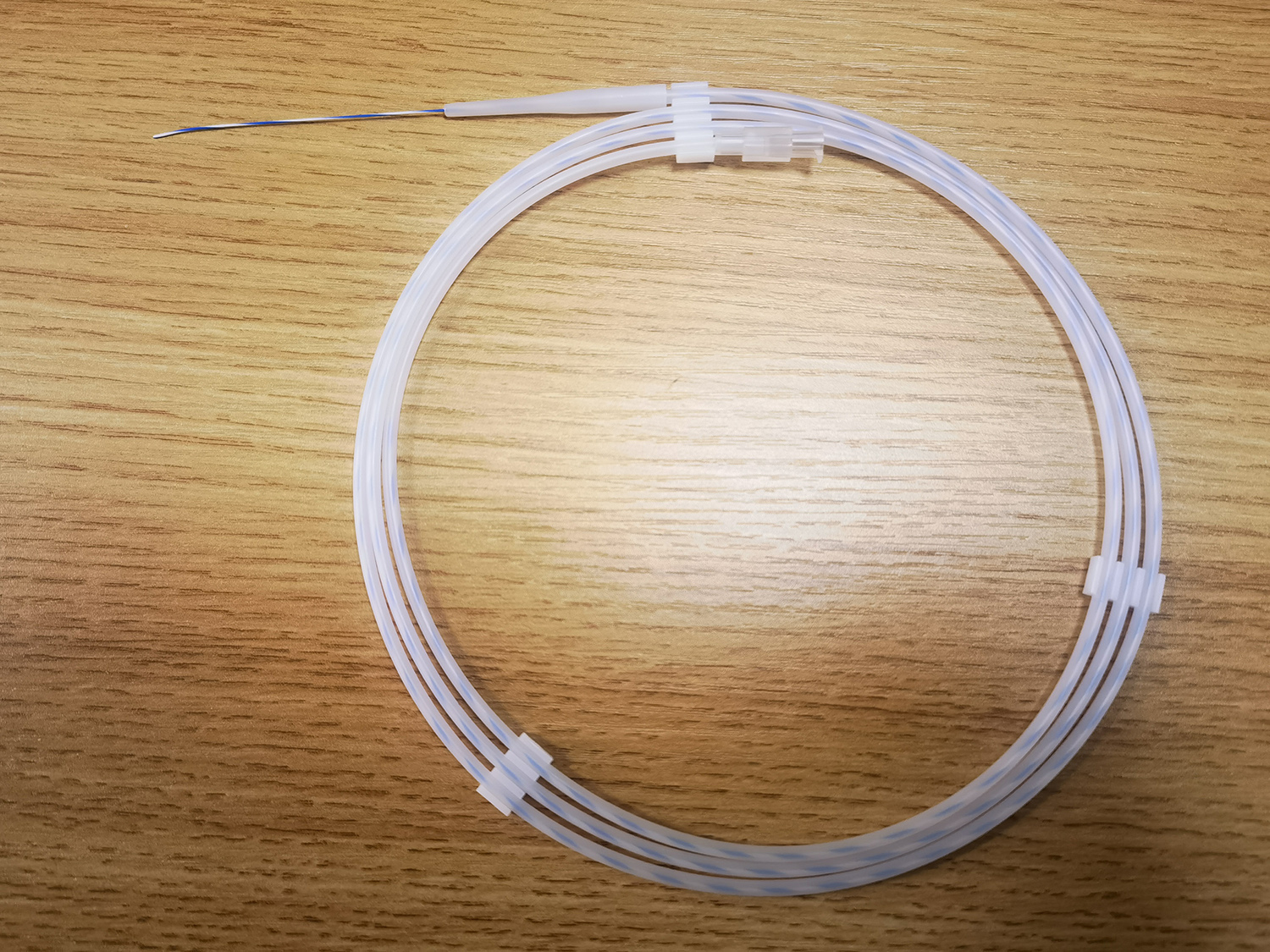

Zebra Guide Wire for PCNL and RIRS urology surgery /Disposable

Zebra guide wire is a little stiff for easier advancing and perfect handling feedback, the PTFT coating ensures it is easily to be lubricated.
Guide wire color: the defaul color of the guide wire is white and blue stripes, blacke and yellow stripes are available.
Working Principle: Disposable urological guide wire can be guided by B-ultrasound or X-ray into the urinary system or tissue, then guides the device into the urinary tract or tissue.
Applicable groups: for patients who need to guide or introduce other devices into the urinary tract or tissue.
Expected Usage Environment: this product is intended to be used in hospitals and clinics, and should be operated by trained medical professionals. This product is for single use and is valid for three years from the date of sterilization. Product over sterilization expiry date may not be used.
Details

Description:

It is a classic disposable guide wire used for negotiating tract in urology surgery,

the material of the wire core is kink-resistant nitinol,

the surface is blue and white stripes that could provide clear visualization of wire movement.



Features:

---Kink resistant Nickel-titanium alloy inner core with precise advancement and reflection feeling.

---Relatively stiffness enhances the movement in the narrow sites.

---PTFE coating that is easy to be lubricated.

---Blue and white color zebra stripes for easier observation under endoscope.

---Visible under fluoroscopy and B-scan.


Distal Tip Parameters:

---tip length: 5cm, visible under a light source;
---tip shape: straight;
---diameter: 0.028/0.032/0.035 inch available;
---length: 120cm/150cm/180cm available, or else customized.

[Notice]: dual distal tips are available for special application.


Package: individual bag each wire, 5 bags each box, sterilized by ethylene oxide


Ordering Information

Model No.

OD (in)

Length(cm)

Tip

Package

201CH2812

0.028

120

5cm Soft

1/Pack 5P/Box

201CH2815

150

5cm Soft

1/Pack 5P/Box

201CH2818

180

5cm Soft

1/Pack 5P/Box

201CH3212

0.032

120

5cm Soft

1/Pack 5P/Box

201CH3215

150

5cm Soft

1/Pack 5P/Box

201CH3218

180

5cm Soft

1/Pack 5P/Box

201CH3512

0.035

120

5cm Soft

1/Pack 5P/Box

201CH3515

150

5cm Soft

1/Pack 5P/Box

201CH3518

180

5cm Soft

1/Pack 5P/Box
