Stone stop Catheter / Stone Cone / Coil Basket

It is used in the lithotripsy to prevent the stones’ migration (movement) and continue the next step’s stone fragmenting and retrieval.

Working principle: its working part can be inserted into the natural orifice of the human body, get close to the stone, foreign body or tissue sample, the stone and foreign body can be captured by the mesh basket, and then the stone and foreign body can be firmly grabbed by the contraction of the mesh basket.
Environment of intented use: it is intended to be used in hospitals, clinics, etc., and should be operated and used by trained medical professionals. This product is for single use and is valid for three years from the date of sterilization. The product shall not be used after the expiration date of sterilization.
Applicable population: Patients with kidney stones and ureteral stones who need endoscopic lithotripsy, such as Retrograde intrarenal surgery (RIRS), percutaneous nephrolithotomy (PCNL), etc.
The disposable kidney stone retrieval basket is composed of mesh basket, guide rope, rope sheath, control handle and protective tube.
Details

Description:

It is used in the lithotripsy to prevent the stones’ migration and continue the next step’s stone breaking and retrieval.



Features:

---Kink resistant Nickel-titanium alloy inner core with precise advancement and reflection feel.

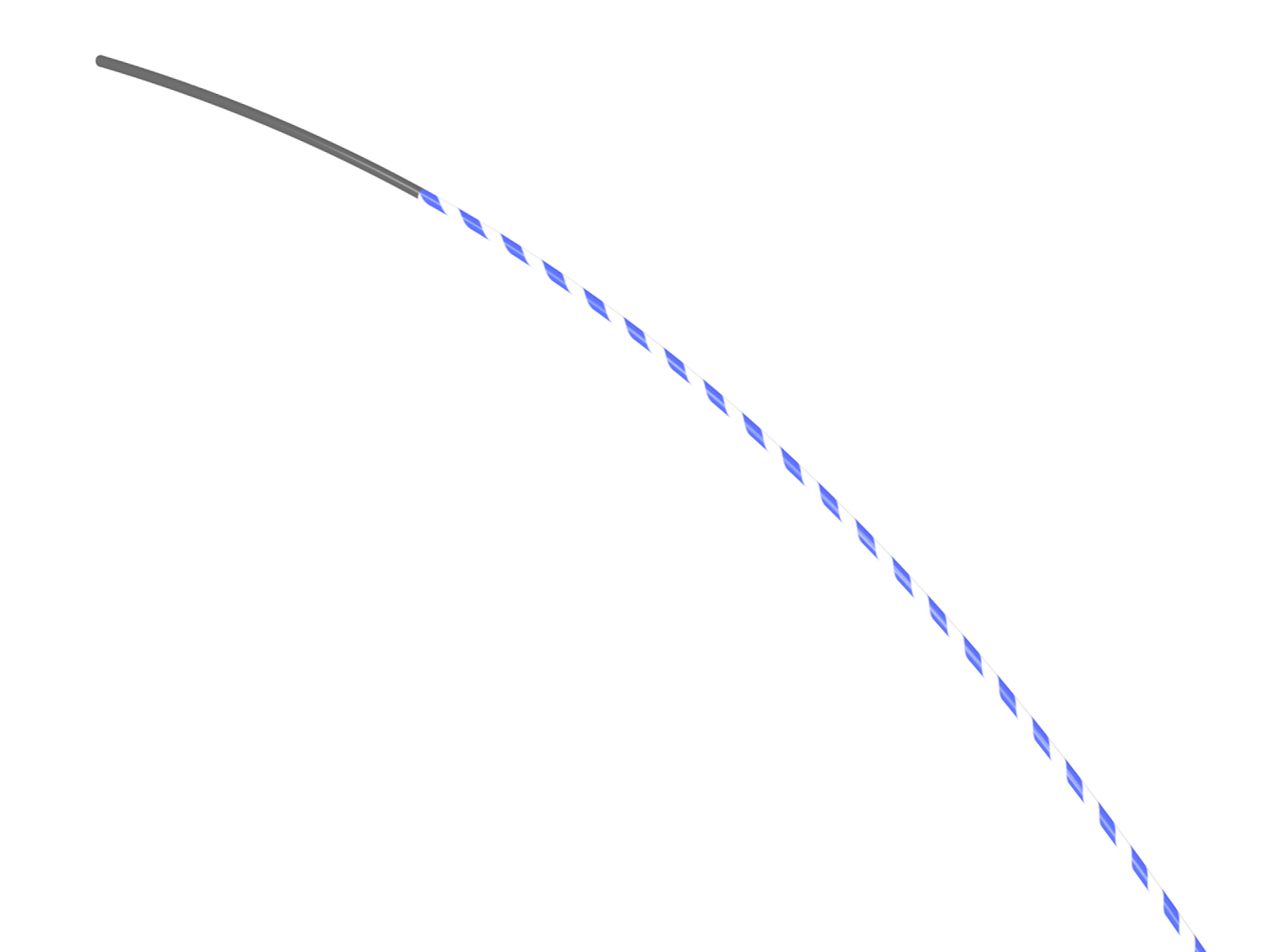

---Zebra stripes for easier endoscope observation.

---PTFE coating that is easy to be lubricated

---Prevent stone migration during the lithotripsy.

---Increase stone fragmentation efficiency.

---Simple design for swift operation.



Working Mechanism: (Reference photos, the real coil is different)

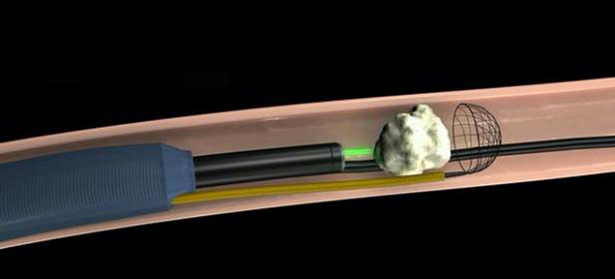

Step 1: stop the stone's migration for laser fragementation

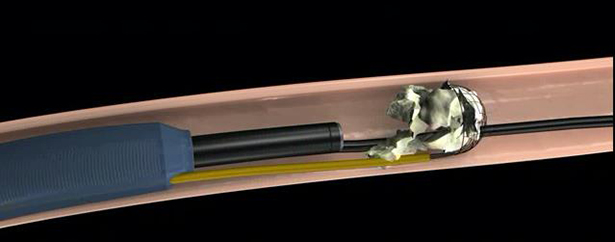

Step 2: retrieval the stone fragments to the sheath


Ordering Information

Model

Description

Specification

Max. Coil Opening Diameter (mm)

Effective Coil Length (mm)

Total length

(cm)

222A05

Regular
type

5

6

120

222A08

8

222A10

10

222B05

Reinforced
type

5

222B08

8

222B10

10

222C05

Detachable
regular
type

5

222C08

8

222C10

10

222D05

Detachable
reinforced
type

5

222D08

8

222D10

10

 Notice: Only the model 222C10 is available at present.


Demonstration video:

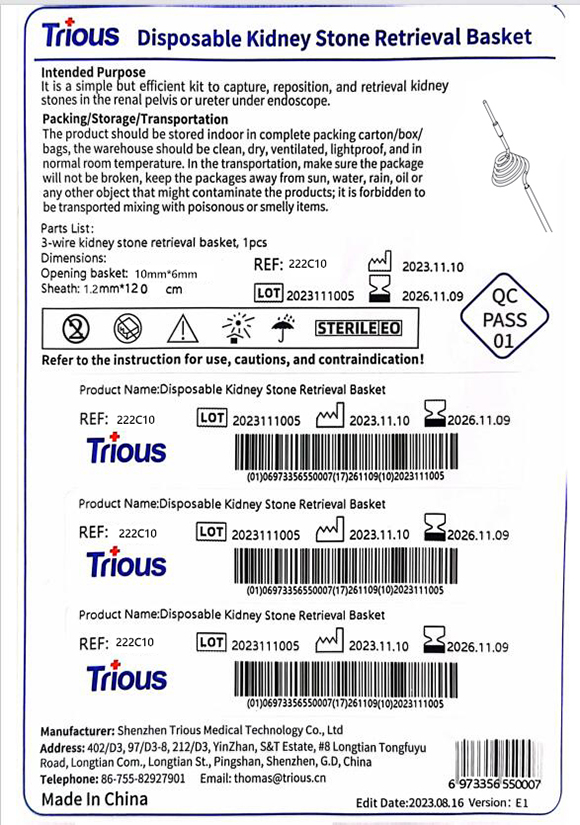

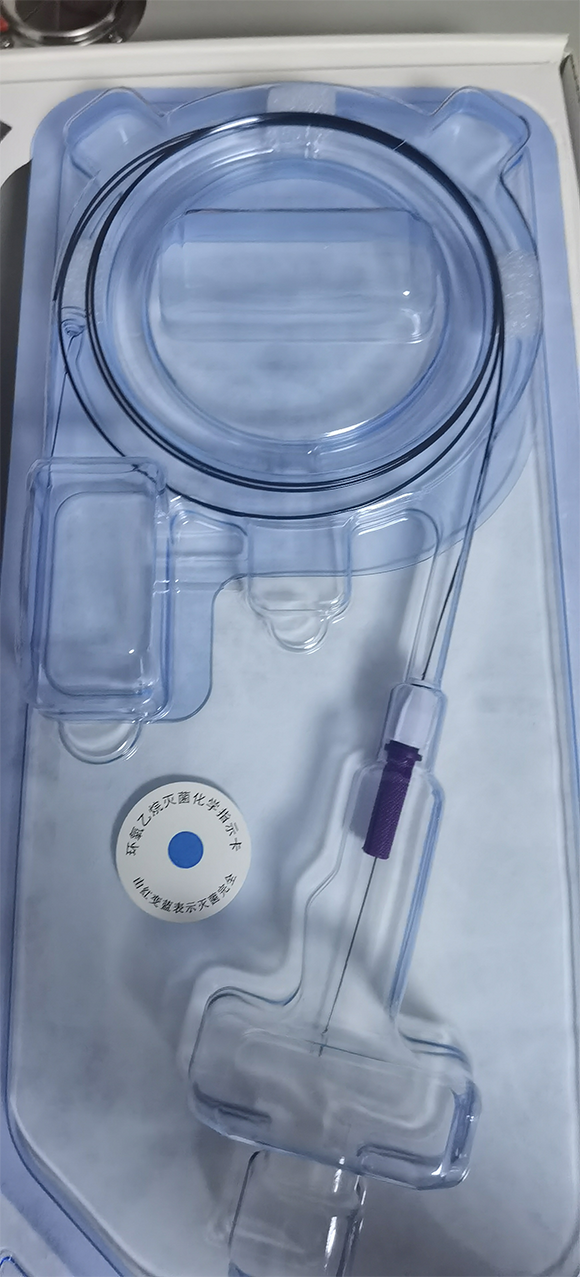

Real Package Photo:
